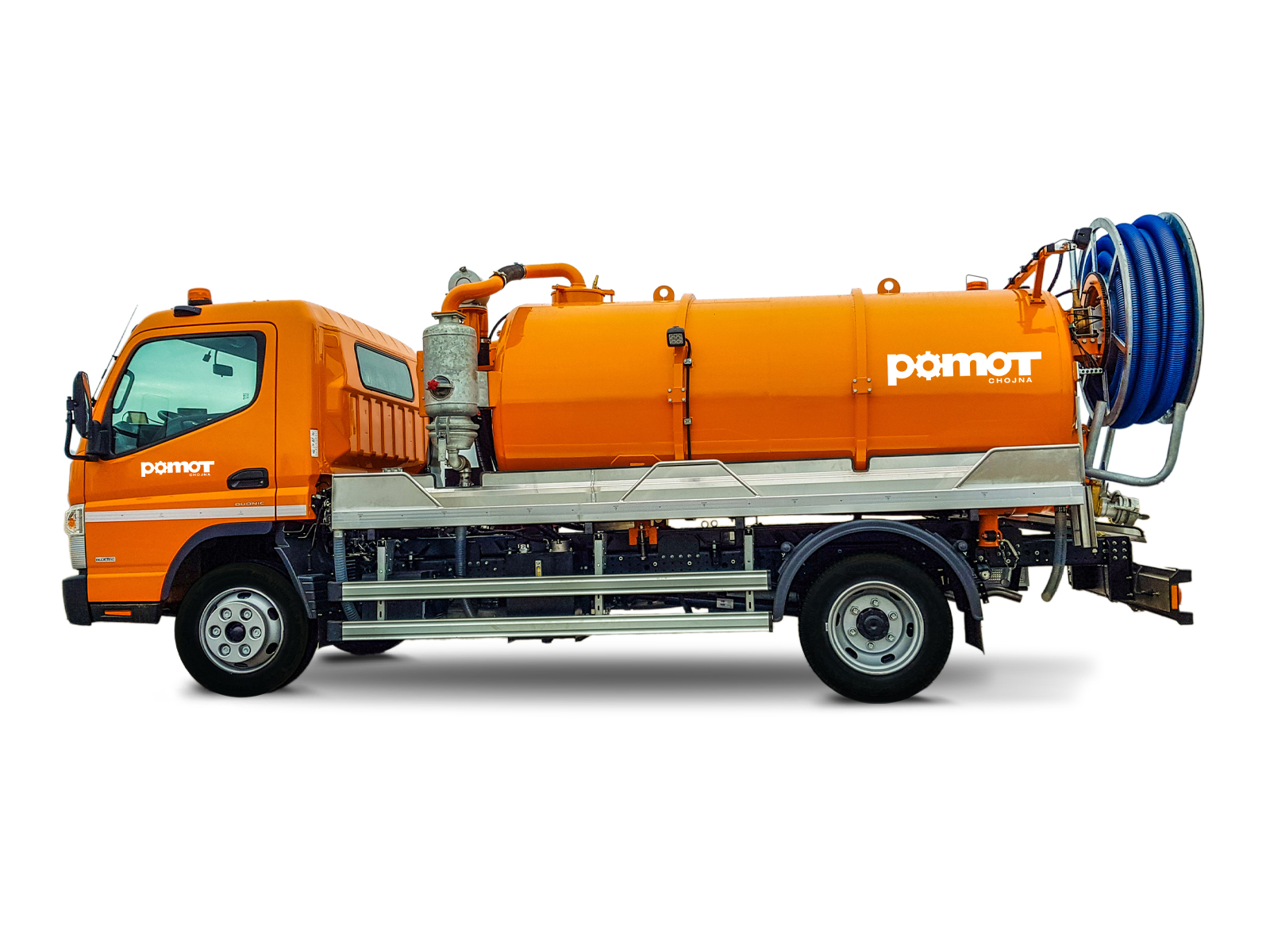

The compact and lightweight ZSAK/ZSA suction and flushing unit, mounted on an 8.5t GVW Fuso Canter chassis, is designed for a wide range of operations in hard-to-reach areas such as narrow streets, underground garages, and allotment gardens. These compact units deliver high performance comparable to that of larger vehicles.
| Specifications | Description |
|---|---|
| Material | Structural carbon steel S355 |
| Wear-resistant carbon steel S500 | |
| Acid-resistant stainless steel | |
| Tank | 3.5 m³ with a fixed partition: 2.5 m³ sludge / 1 m³ water |
| Suction system | 430 m³/h |
| Pressure system | 50 l/min, 150 bar |
| Pressure hose | DN 13, 60 m |
| Suction hose | DN 110, 6 m or 2 × 3 m |
| Tank discharge | By tipping or gravity |
| Control | Manual |
| Options | Side-mounted tool compartment, hydraulic hose reel |
Vacuum Tanker with Sewer Cleaning Function – “Mini Kombi”
A compact vacuum-pressure vehicle designed for small and medium-sized water and sewage companies, where simplicity, low operating costs, and high-quality performance are the top priorities.
A valued and reliable specialized body used for municipal tasks is our universal kombi unit. It covers a wide range of applications — from cleaning sewer and stormwater networks, servicing domestic treatment plants and small sewage pumping stations, to sludge removal (vacuuming).
These vehicles feature a compact build, low tare weight, and excellent maneuverability. The units are …
Equipped with a sliding scraping piston that allows adjustment of the water chamber capacity, as well as a front adjustable chamber. Operation is further facilitated by a hydraulically powered hose reel. Control of the unit’s functions is managed via a control box and a remote radio controller.
The two-axle vacuum trailers are not permanently integrated with the …
The vehicle is equipped with a hydraulic arm for watering and a manually operated hose reel, also used for irrigation. Its compact size ensures easy maneuverability in urban environments.
– An essential tool for modern cities
– Streamlines the maintenance of green areas
