Liquid Fertilizer Injector

Working widths: 3 m, 6 m, 9 m

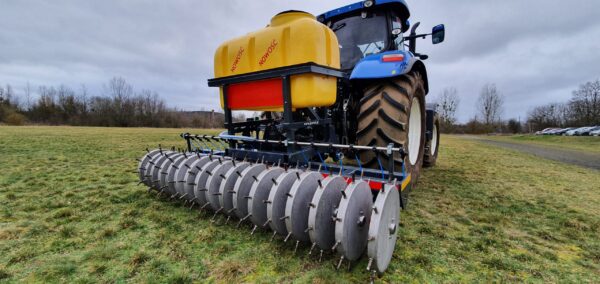

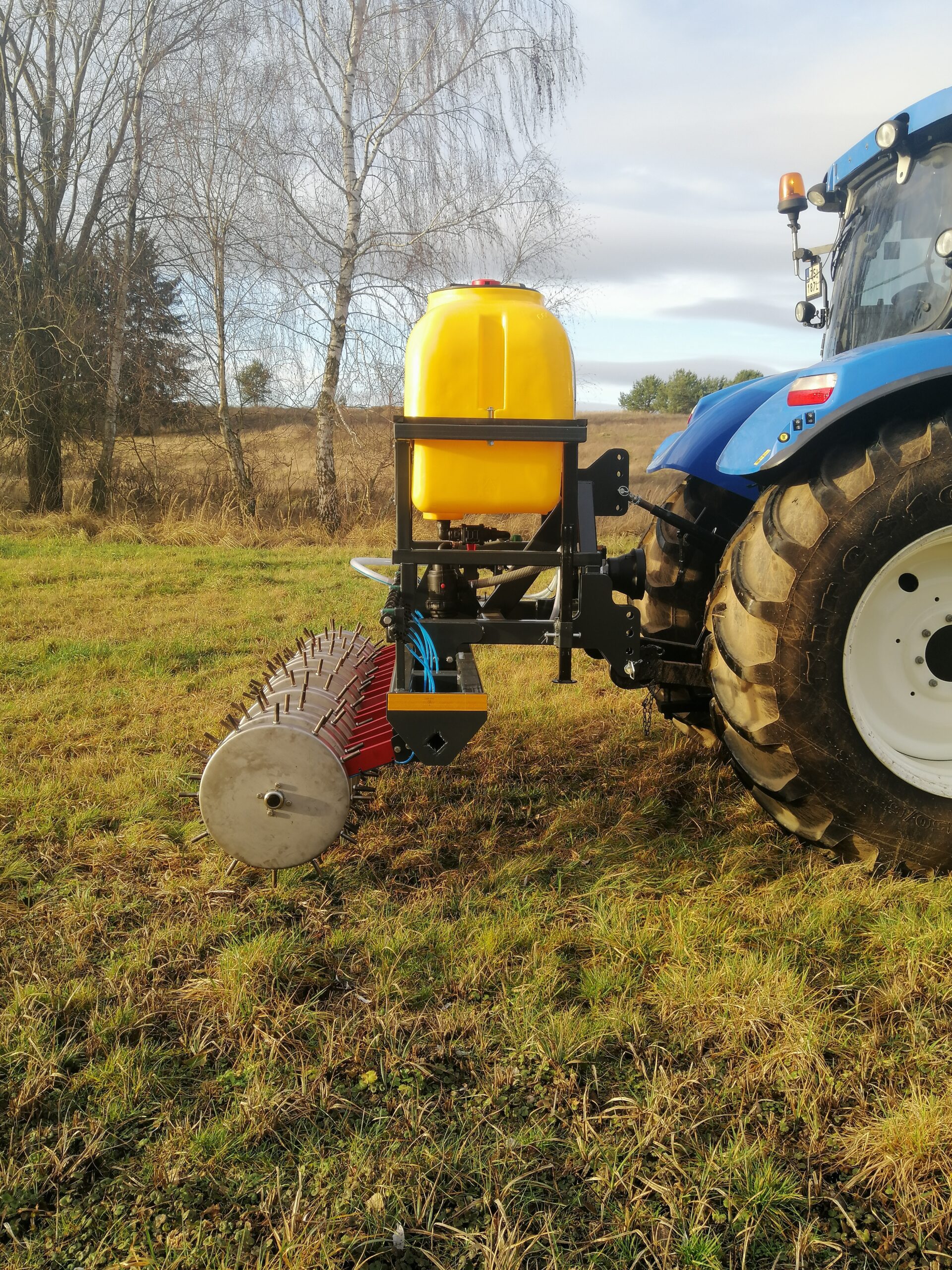

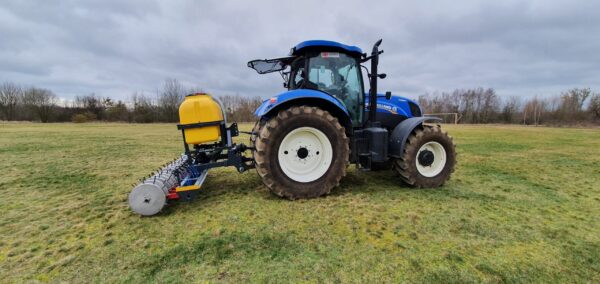

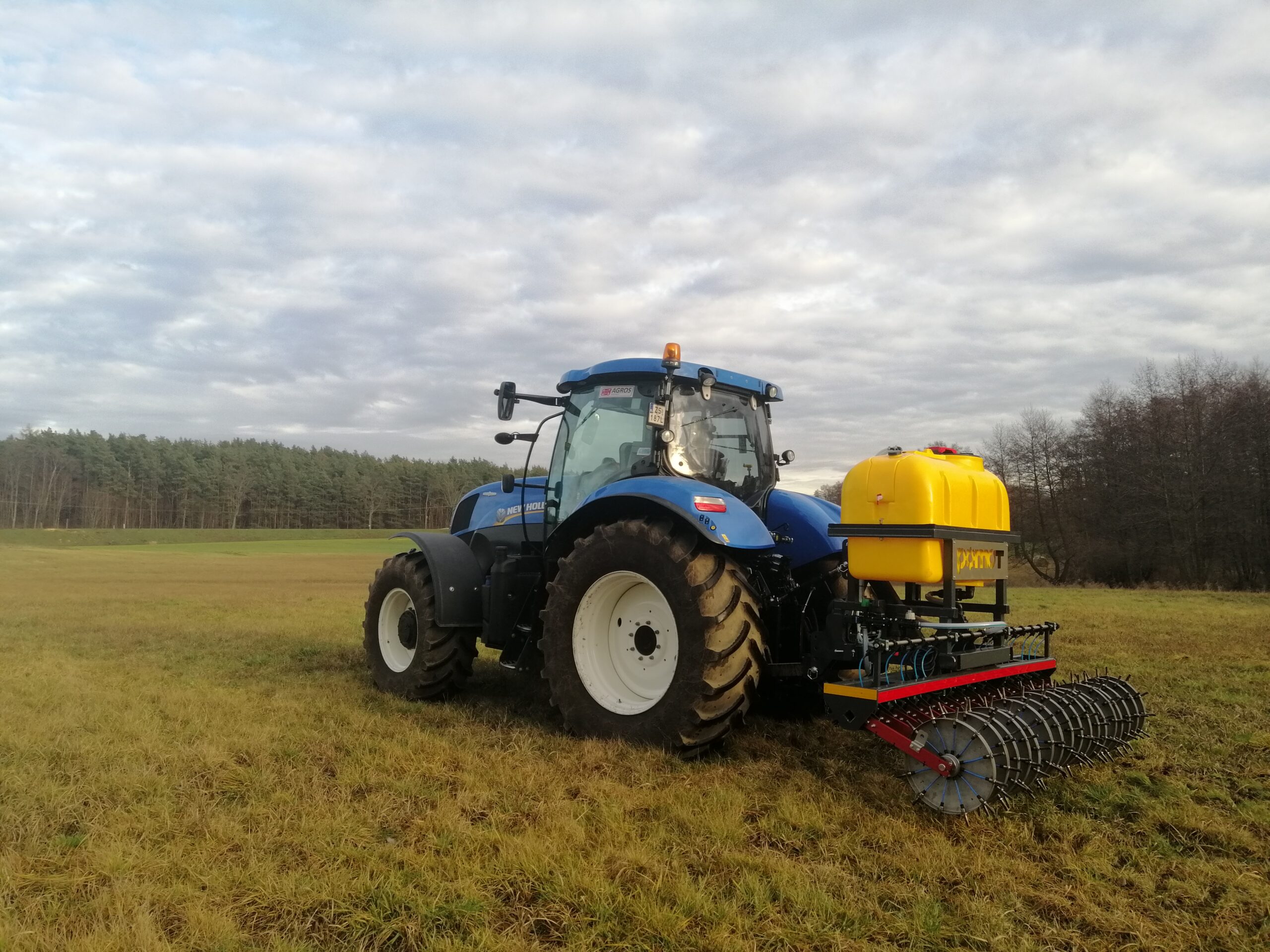

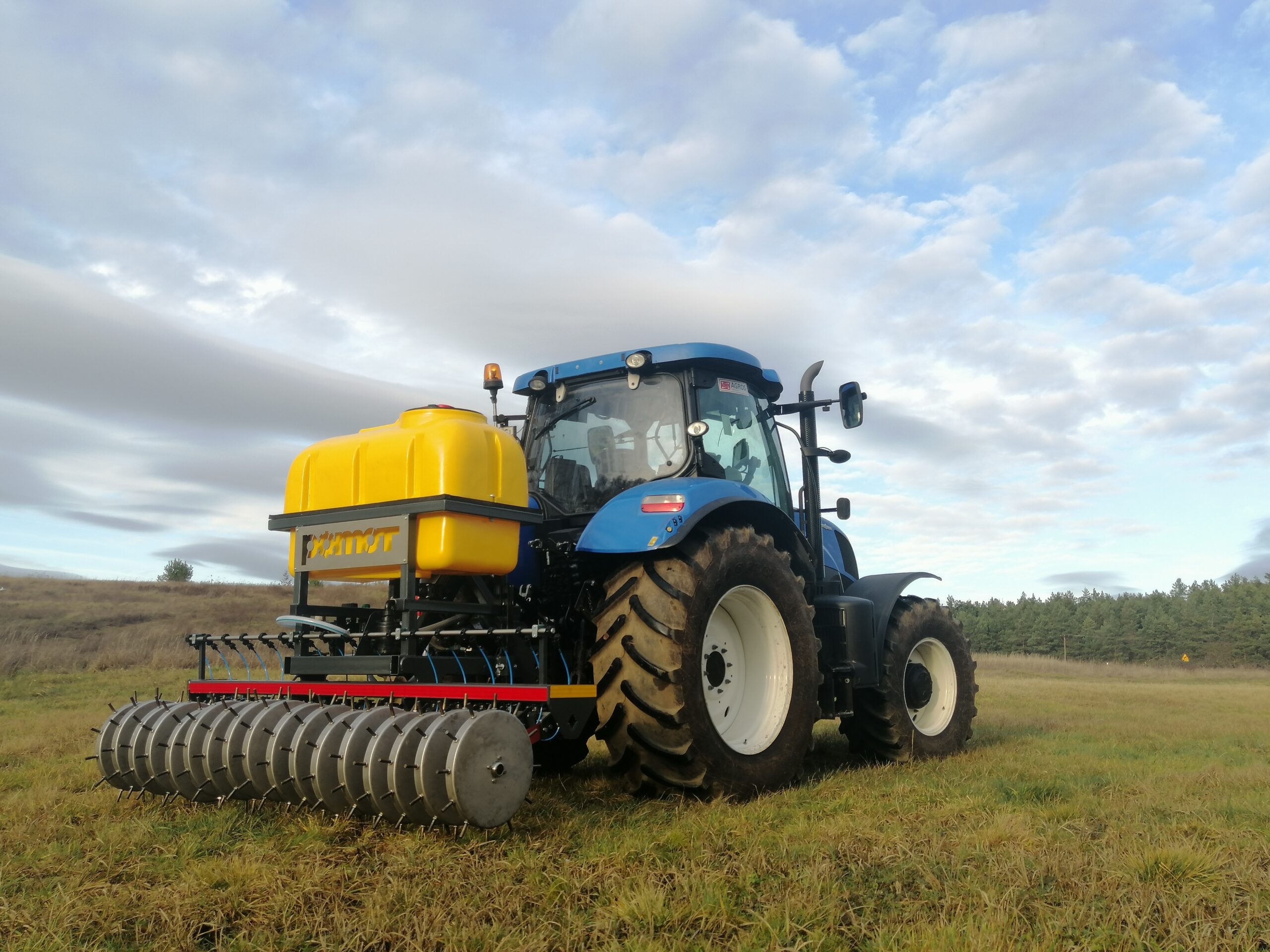

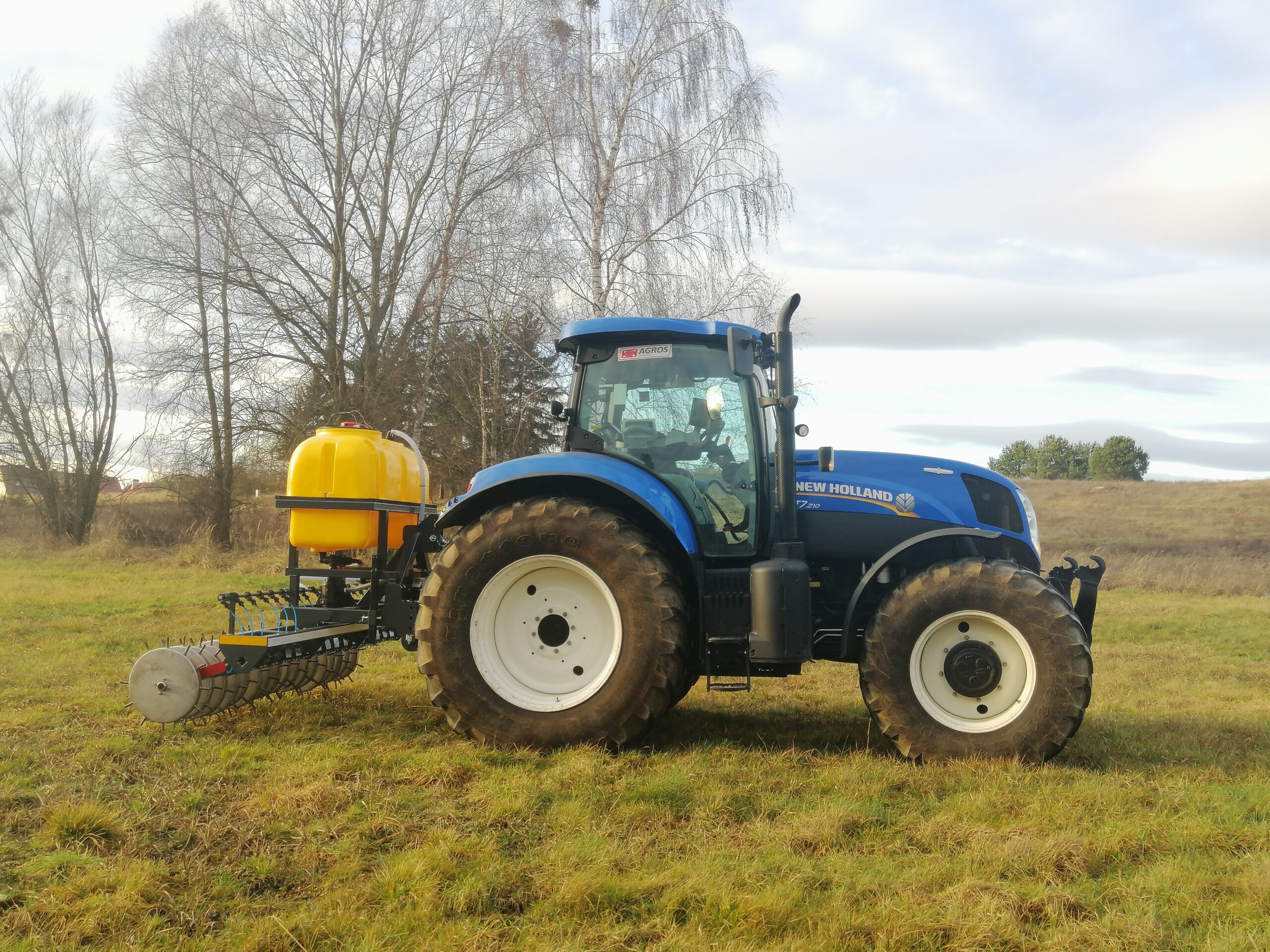

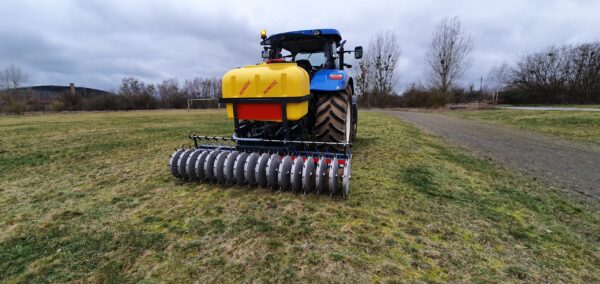

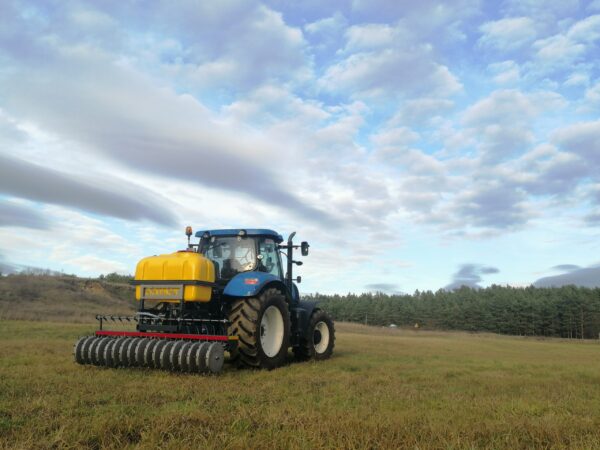

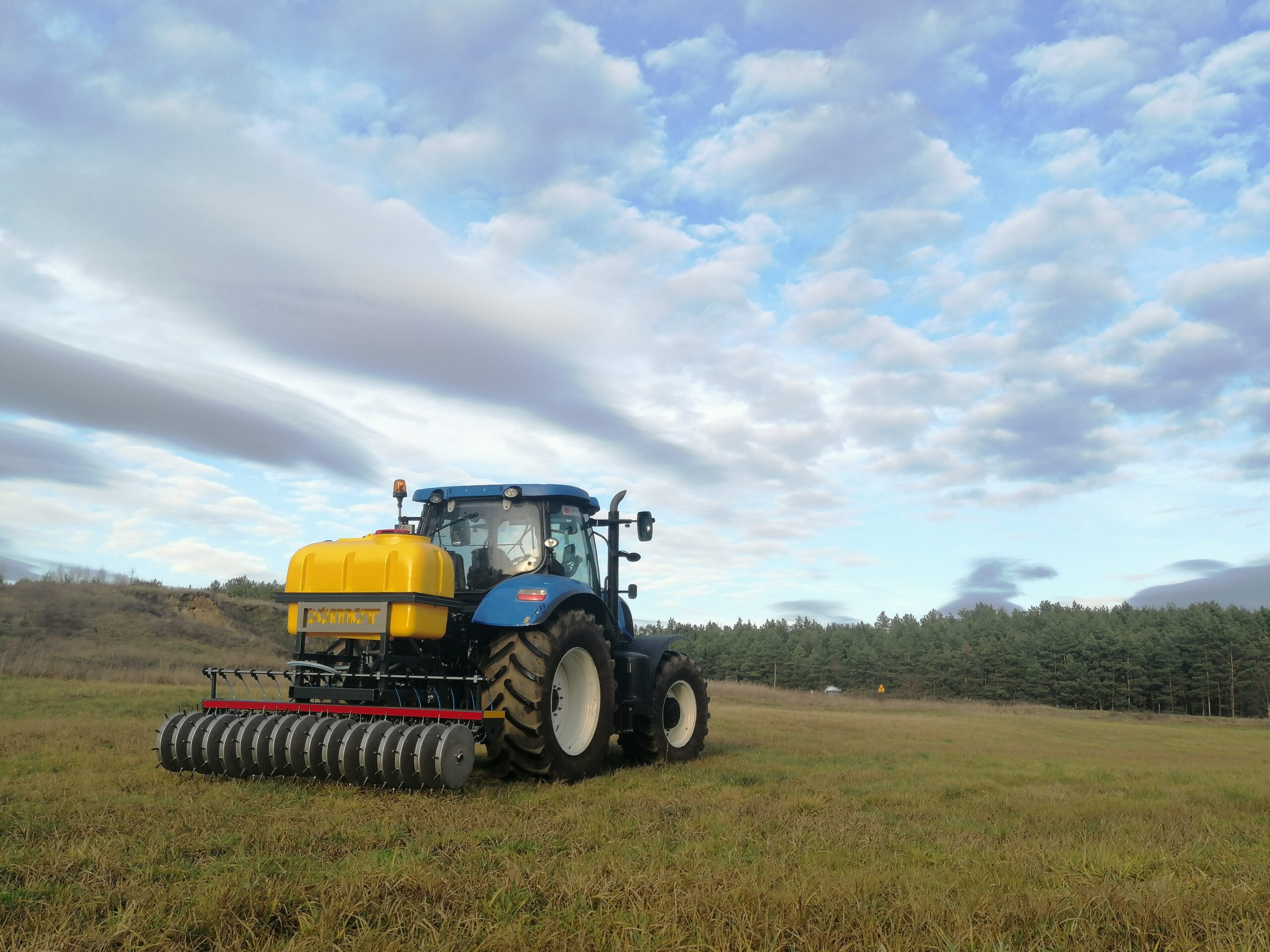

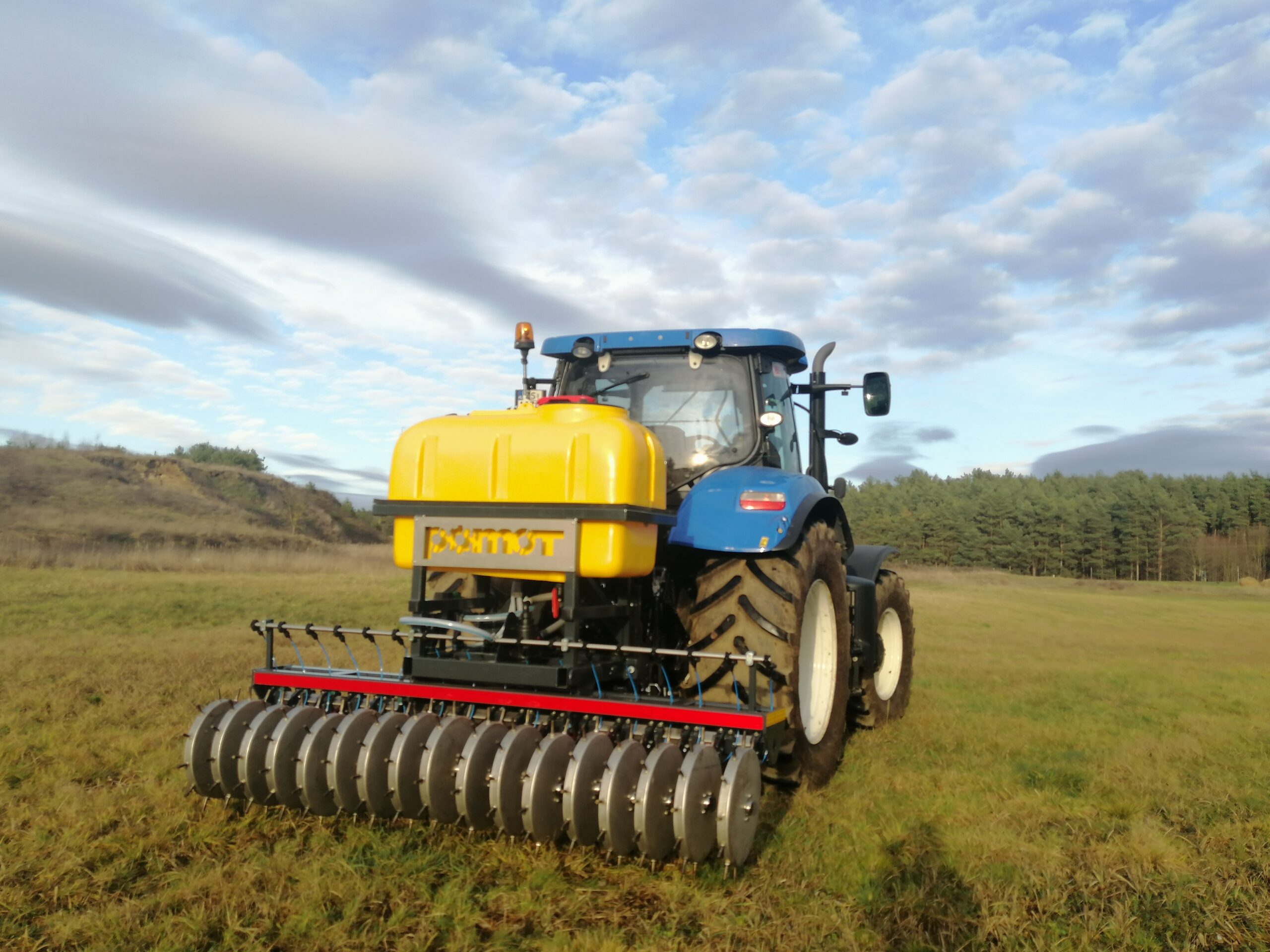

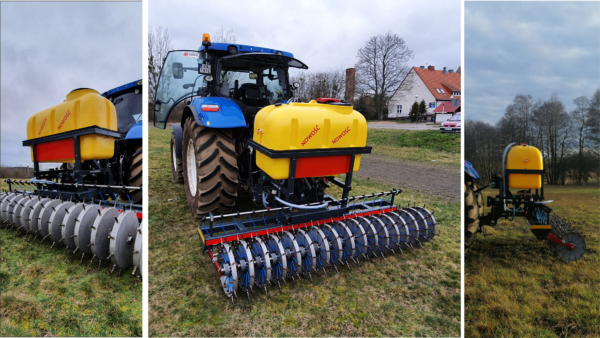

Ideal for use on small areas such as grasslands and vegetable plantations. The machine is equipped with a small tank mounted either on the machine itself or directly on the tractor (front mounting).


📱 Marcin Górski: +48 691 897 575 | 📧 m.gorski@pomot.pl

📱 Łukasz Lechicki: +48 607 999 359 | 📧 l.lechicki@pomot.pl




General Information

FERTILIZER APPLIED WITHOUT LOSSES!!!

With us, you gain more than others:

  • Liquid fertilizer is introduced into the soil without losses and directly at the plant roots

  • Rapid and complete assimilation of nutrients by the plant

  • Efficient and economical use of fertilizers, equipment, and time

  • Increase in crop yield by 10-15%

  • Fertilizer is evenly distributed across the entire field

  • Plants receive nitrogen available throughout the entire growing season

  • Aeration effect after fertilization additionally saturates the soil with oxygen

Liquid fertilizer injectors can be used for fertilizing all types of crops.

ADVANTAGES OF INJECTION OVER OTHER FERTILIZER APPLICATION METHODS:

  • Injection technology does not burn plants due to uneven fertilization

  • Quality and uniformity of application are independent of weather conditions (wind, soil, excessive moisture)

  • Possibility to use inexpensive fertilizer thanks to a highly precise control system for applications from 100 to 2000 l/ha

  • The CULTAN system injects fertilizer into the soil and leaves long-lasting aeration holes, which further increases soil fertility

Technical Specification

  • Liquid Fertilizer Injector

    • Computer control by ARAG BRAVO 180 S enables easy and precise dosing of the desired amount of fertilizer into the soil.

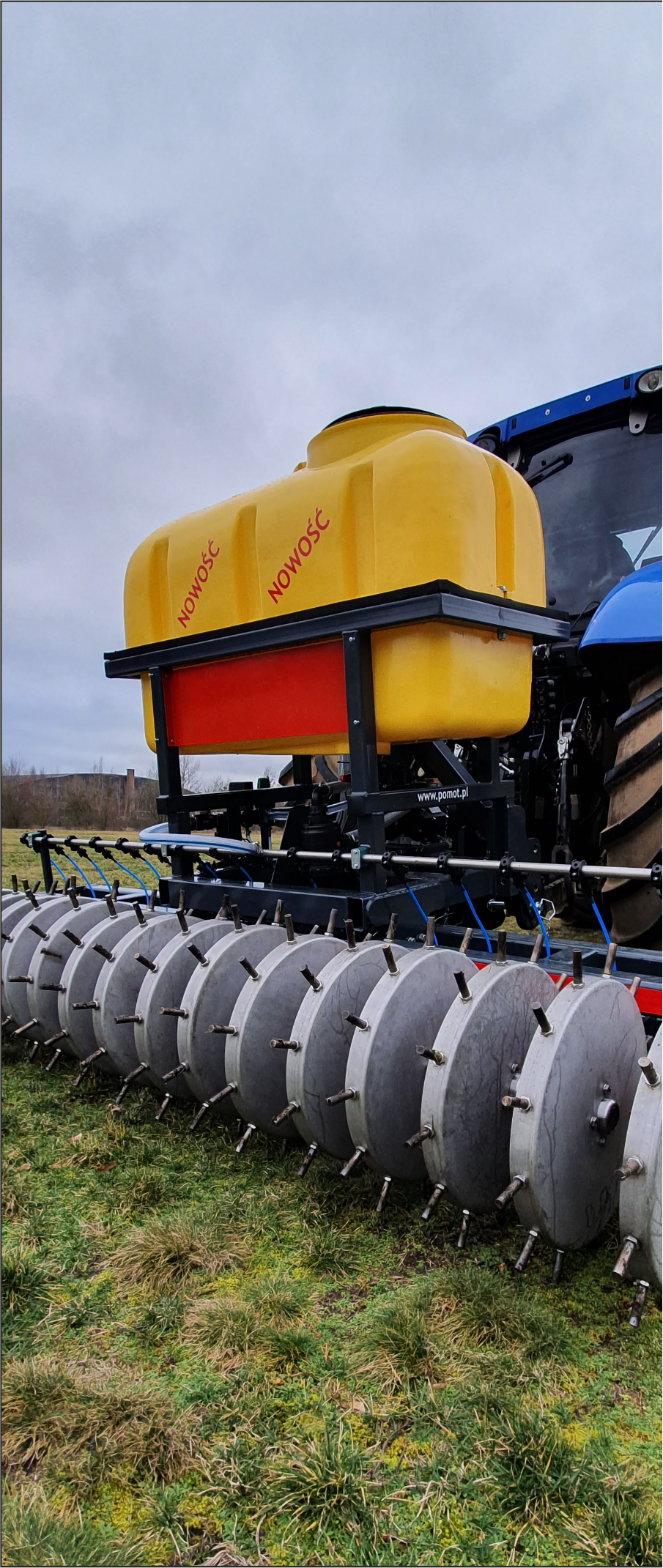

    • Small tank mounted either on the device or directly on the tractor.

    • The 3 m wide support beam features a special lattice design that significantly reduces the total weight of the machine.

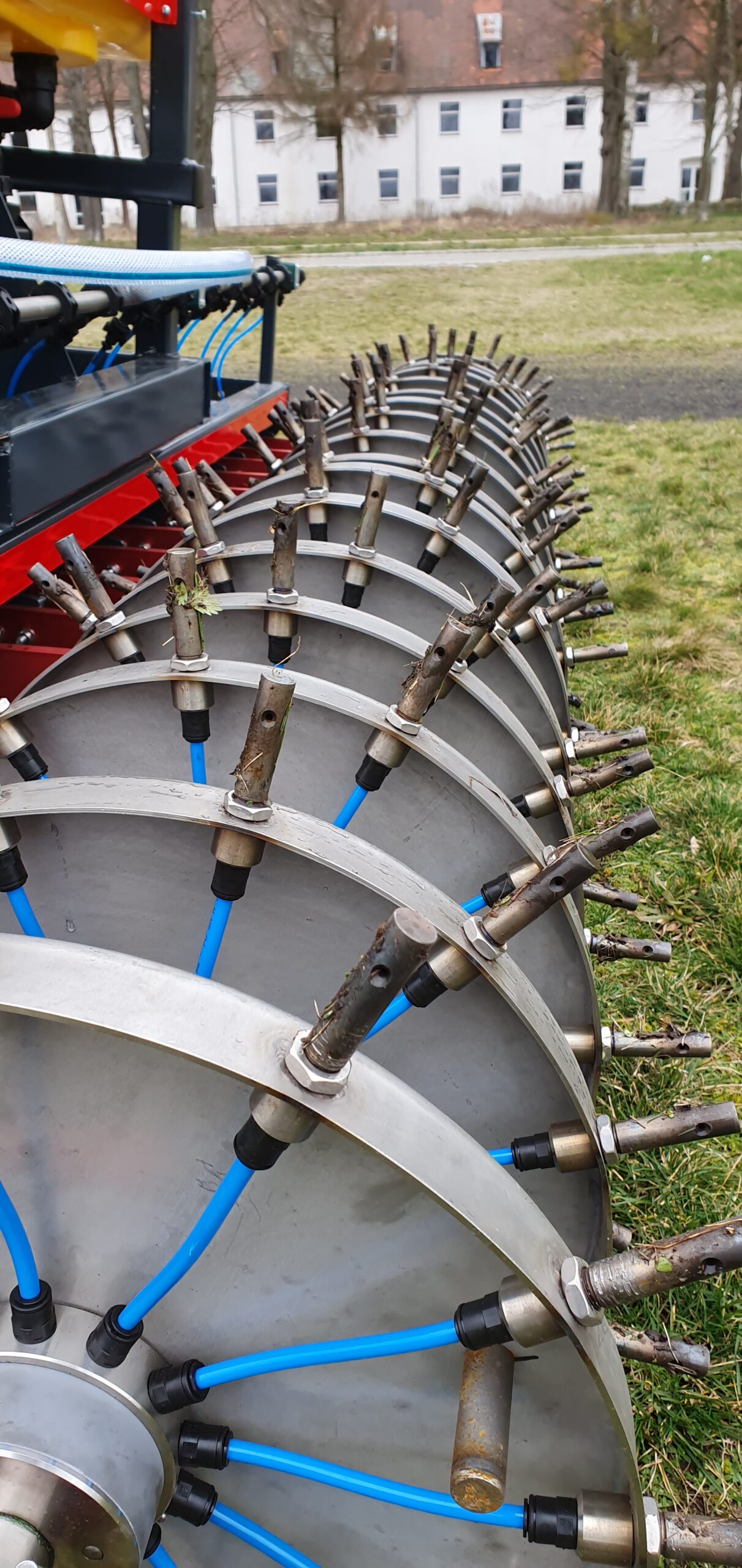

    • Wheels made of stainless steel.

    • All surfaces are protected against the aggressive effects of liquid mineral fertilizers (RSM).

    Type CUMA 03 Z CUMA 06 Z CUMA 09 Z
    Tank capacity from 600 to 1200 liters from 600 to 1200 liters from 1000 to 8500 liters
    Tires none none 1050/50 R32
    Number of injection wheels from 12 to 17 from 24 to 34 from 36 to 51
    Working width 3 m 6 m 9 m
    Control system ARAG BRAVO 180 S ARAG BRAVO 300 S ISOBUS
    Tank filling device none none approx. 1200 liters/min
