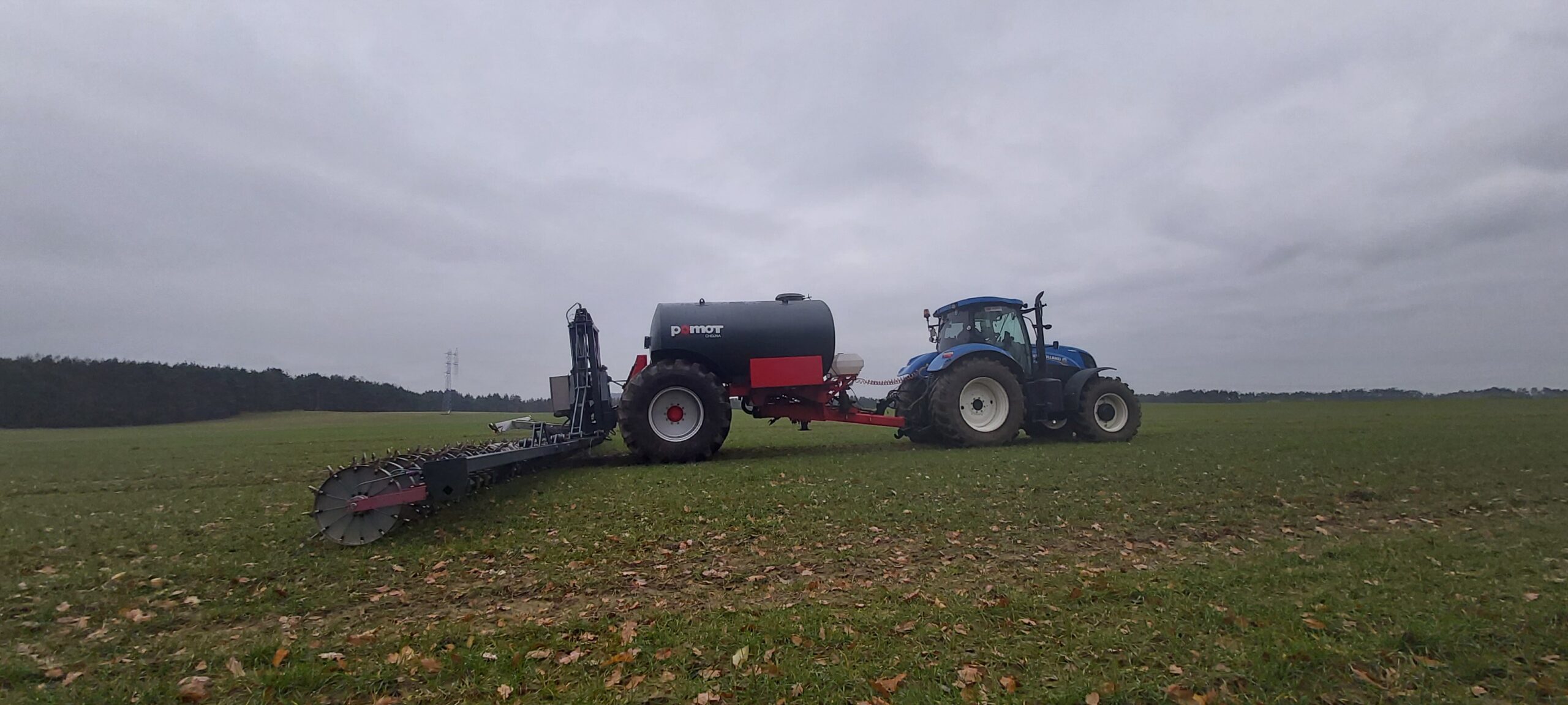

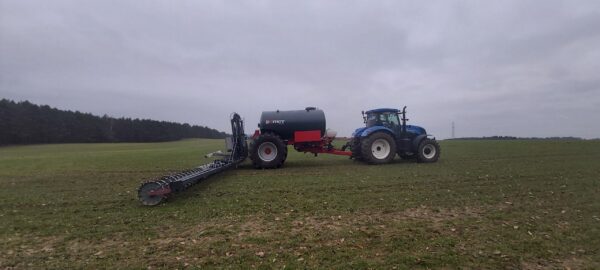

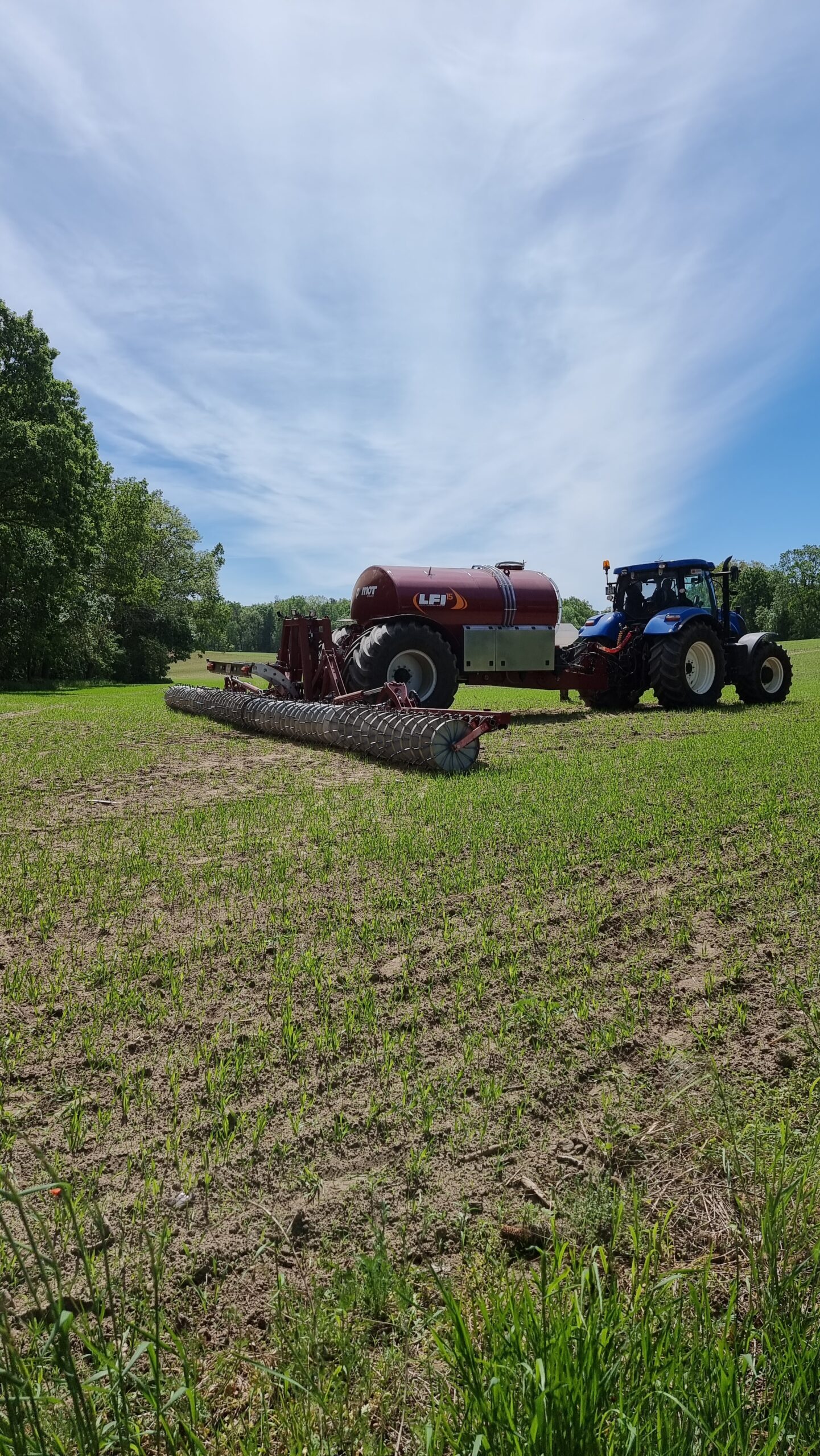

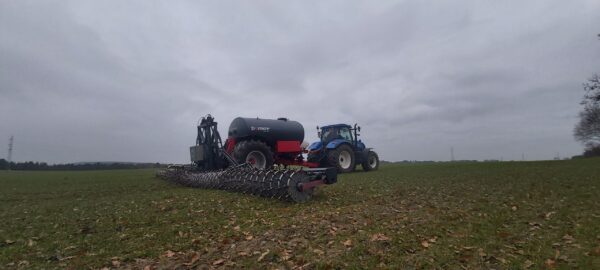

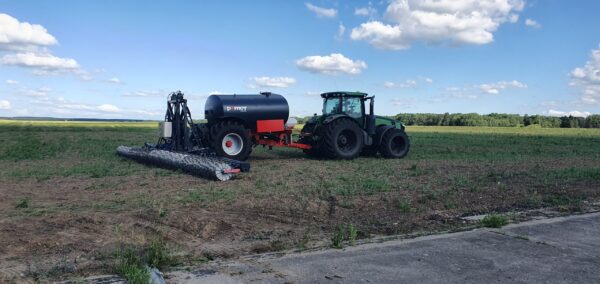

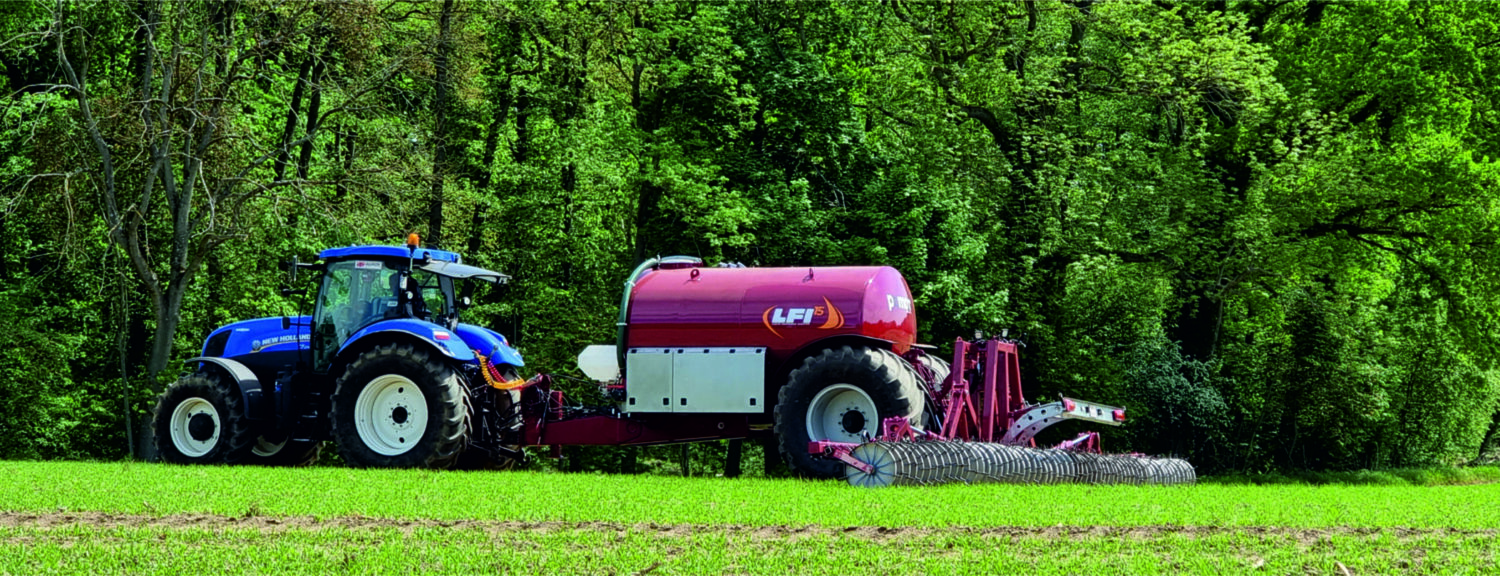

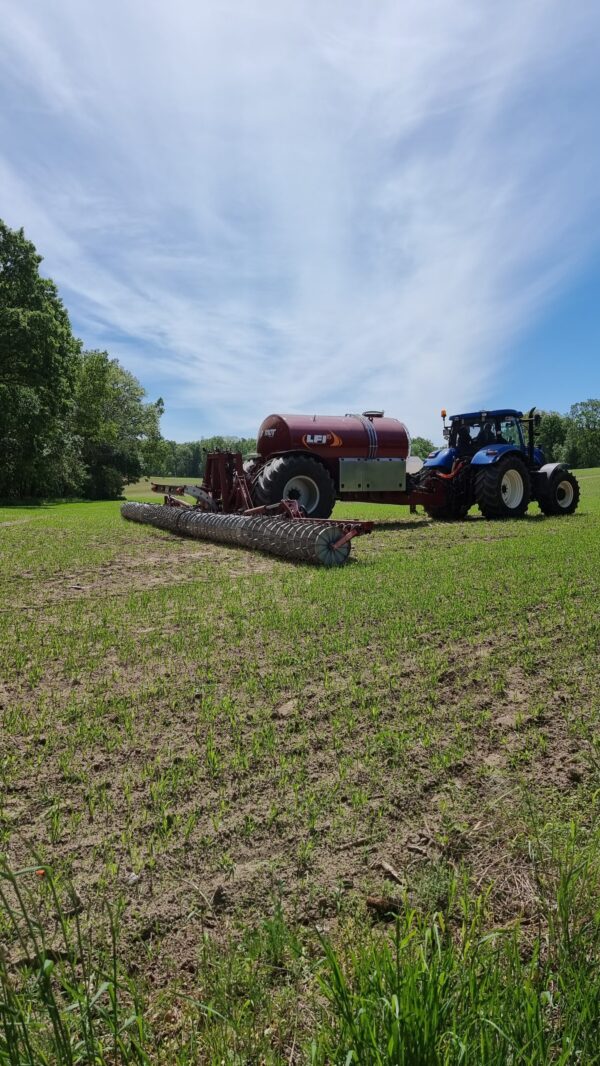

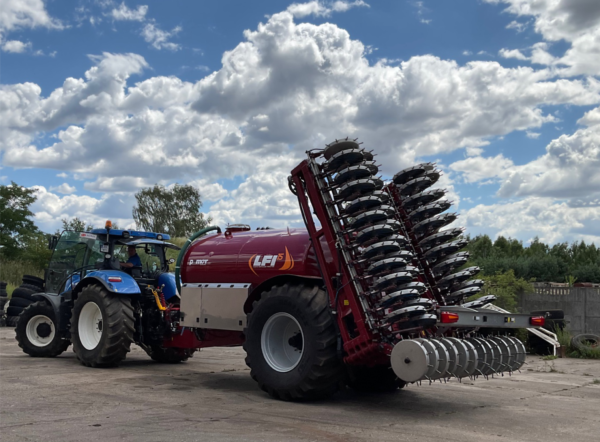

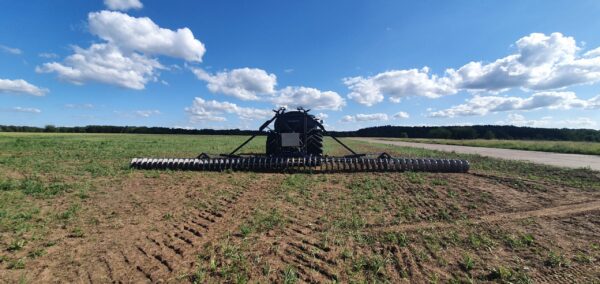

Liquid Fertilizer Injector

Working width: 12 m, 15 m

CUMA FK liquid fertilizer injectors can be used for fertilizing various crops such as cereals, rapeseed, corn, and potatoes. They are also ideal for fertilizing grasslands and sports fields. This method allows the use of all commercially available liquid fertilizers.

With this fertilization method, nitrogen is placed directly in the soil near the roots, which eliminates evaporation and fertilizer runoff, thereby ensuring savings in both fertilizer and costs.


📱 Marcin Górski: +48 691 897 575 | 📧 m.gorski@pomot.pl

📱 Łukasz Lechicki: +48 607 999 359 | 📧 l.lechicki@pomot.pl




General Information

FERTILIZER APPLIED WITHOUT LOSS!!!

With us, you gain more than others:

  • Liquid fertilizer is applied to the soil without loss and directly at the plant roots

  • Fast and complete nutrient uptake by the plant

  • Efficient and economical use of fertilizers, equipment, and time

  • Increase in crop yield by 10-15%

  • Fertilizer is evenly distributed across the entire field

  • Plants receive nitrogen available throughout the entire growing season

  • The aeration effect after fertilization additionally enriches the soil with oxygen

Liquid fertilizer injectors can be used for fertilizing all types of crops.

ADVANTAGES OF INJECTION OVER OTHER FERTILIZER APPLICATION METHODS:

  • Injection technology does not burn plants due to uneven fertilization

  • The quality and uniformity of application are independent of weather conditions (wind, soil, excessive moisture)

  • Ability to use inexpensive fertilizer thanks to a highly precise control system for application rates from 100 to 2000 l/ha

  • The CULTAN system injects fertilizer into the soil and leaves aeration channels for an extended period, resulting in increased crop yields

Technical Specification



  • Computer control via ISOBUS enables easy and precise dosing of the desired amount of fertilizer into the soil.

  • A small tank is mounted on the device or directly on the tractor.

  • Wheels are made of stainless steel.

  • All surfaces are protected against the aggressive effects of RSM.



TYPE CUMA 12 C CUMA 15 C
Tank capacity 8500 liters 8500 liters
Tires 1050/50 R32 1050/50 R32

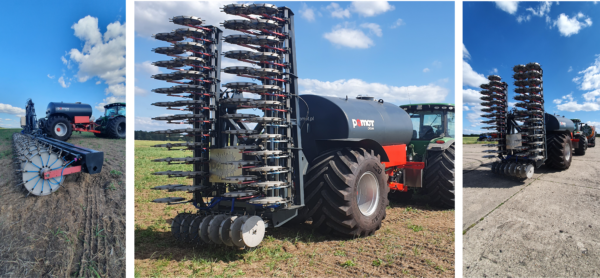

Number of injection wheels 24 to 48 30 to 60
Working width 12 m 15 m
Computer control ISOBUS ISOBUS
Tank filling device approx. 1200 liters/min approx. 1700 liters/min
