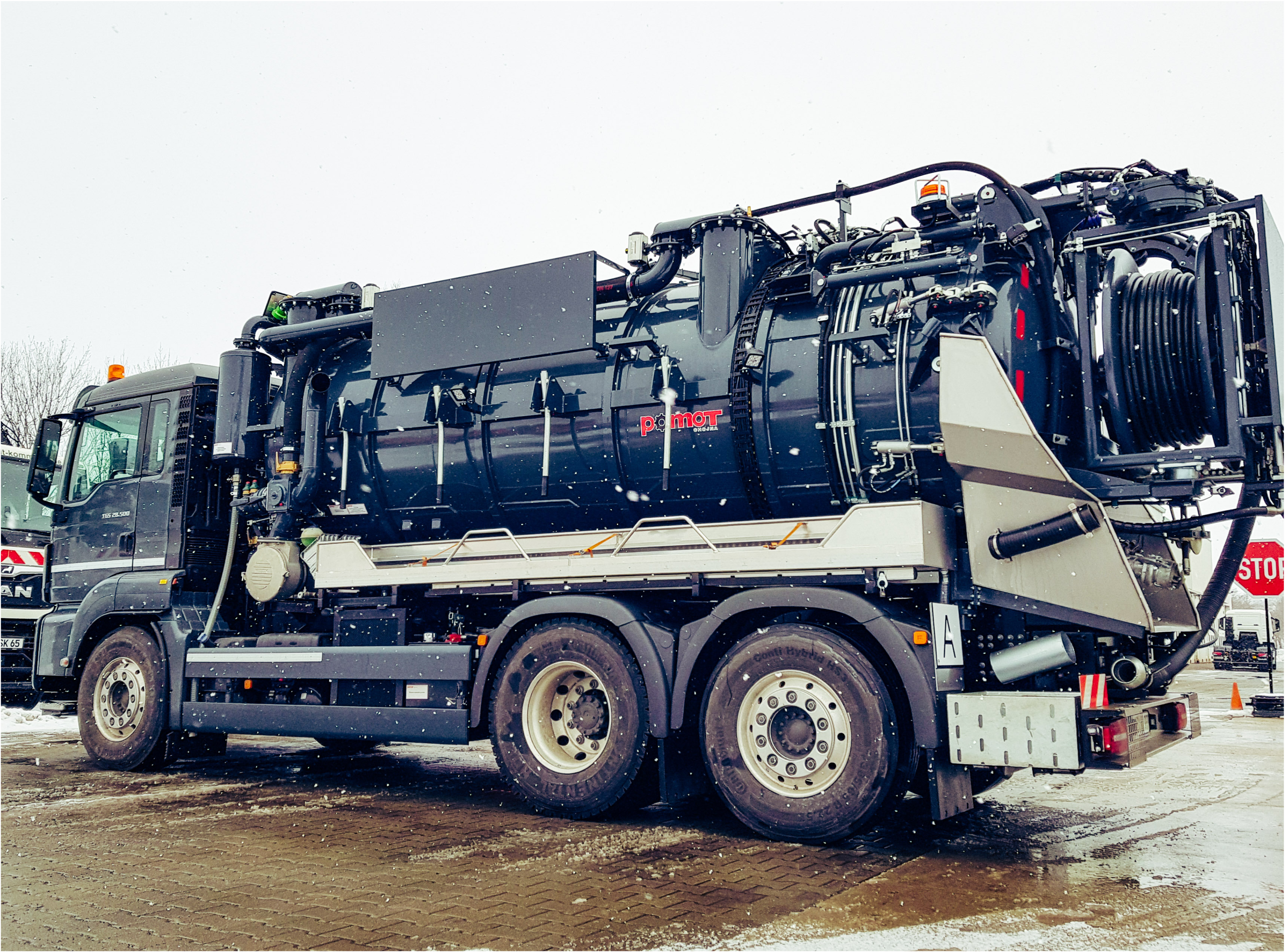

Pressure Suction-Flushing Vehicle on 6×2 Chassis, 26 t GVW – Boom Variant I

The combined ZSAK body represents our standard production of suction-pressure vehicles used for hydrodynamic cleaning.

You can customize the KOMBI from very basic equipment up to a high-performance machine. Our hydraulic boom saves considerable effort and enables precise operation. An ADR certificate is available for the transport of hazardous waste.

Available for installation on MAN, DAF, MERCEDES, SCANIA, and VOLVO chassis

📱 Tomasz Sławiński: (+48) 885 775 510 | 📧 t.slawinski@pomot.pl
📱 Piotr Śliwiński: (+48) 691 897 230 | 📧 p.sliwinski@pomot.pl
Category: Tag:

Technical Specification

Parameter Description
Material – Structural carbon steel S355

– Wear-resistant carbon steel S500

– Acid-resistant stainless steel
Tank 10 m³ – 14 m³ with fixed or sliding partition
Suction system From 900 m³/h up to 2500 m³/h
Pressure system 330 l/min at 170 bar
Boom reach Variant I 4500 mm, rotation angle 270°, lifting 27°, tilt 25°
Boom reach Variant II 5500 mm, rotation angle 270°, lifting 59°, tilt 12°
Control Manual and remote control
Tank discharge Sliding piston or tipping
Sludge pump Option to install a sludge pump
