STANDARD EQUIPMENT
Hopper Body
- Made of 3 mm thick sheet metal
- Frame and cargo box coated with protective paint
- Cargo box capacity: 1,700 L
- Tank bottom lined with a 12 mm plastic layer – prevents material from sticking and increases the lifespan of the chain
Running Gear
- Single-axle wheel set
- Rigid axle: 70 × 70 × 1650 mm
- Tires: 385/65 R22.5
- Frame made of closed-section profile with additional reinforcements
- Manual parking brake
- Main brake: single-circuit pneumatic system
- 12V lighting installation
- Adjustable support leg
- Coupling: rotating hitch, DN 50 mm
Spreading System (500 mm wide)
- 500 mm wide chain conveyor
- Chain moves on a 12 mm plastic liner at the bottom of the tank
- Mechanical drive of the conveyor – from wheel hub to chain via gearbox, ensuring constant spreading rate regardless of travel speed
- Single-disc spreading adapter

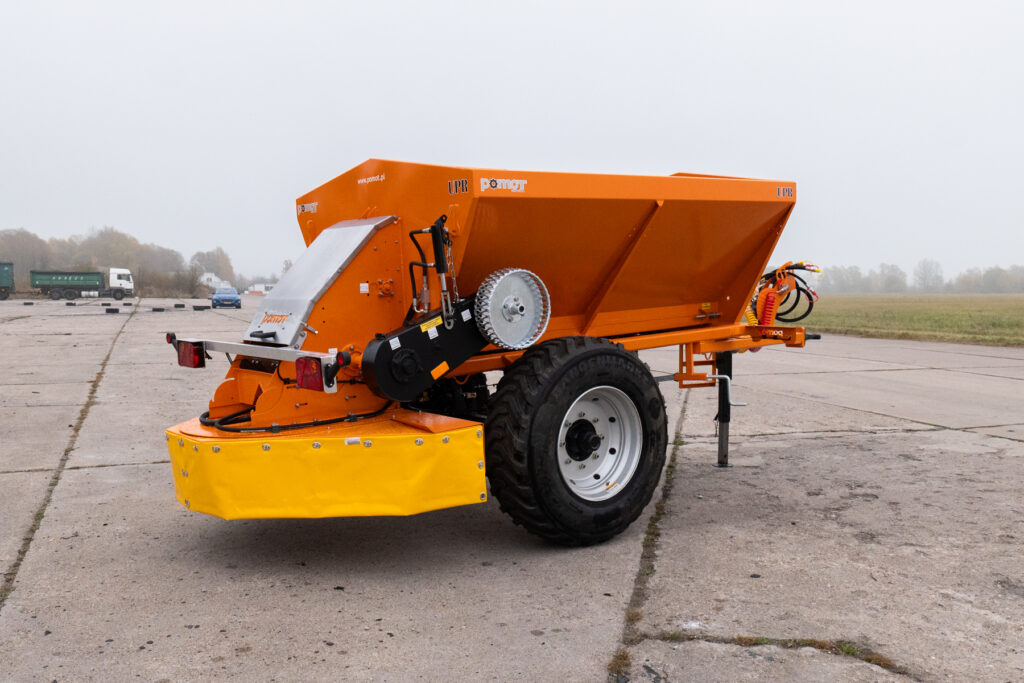

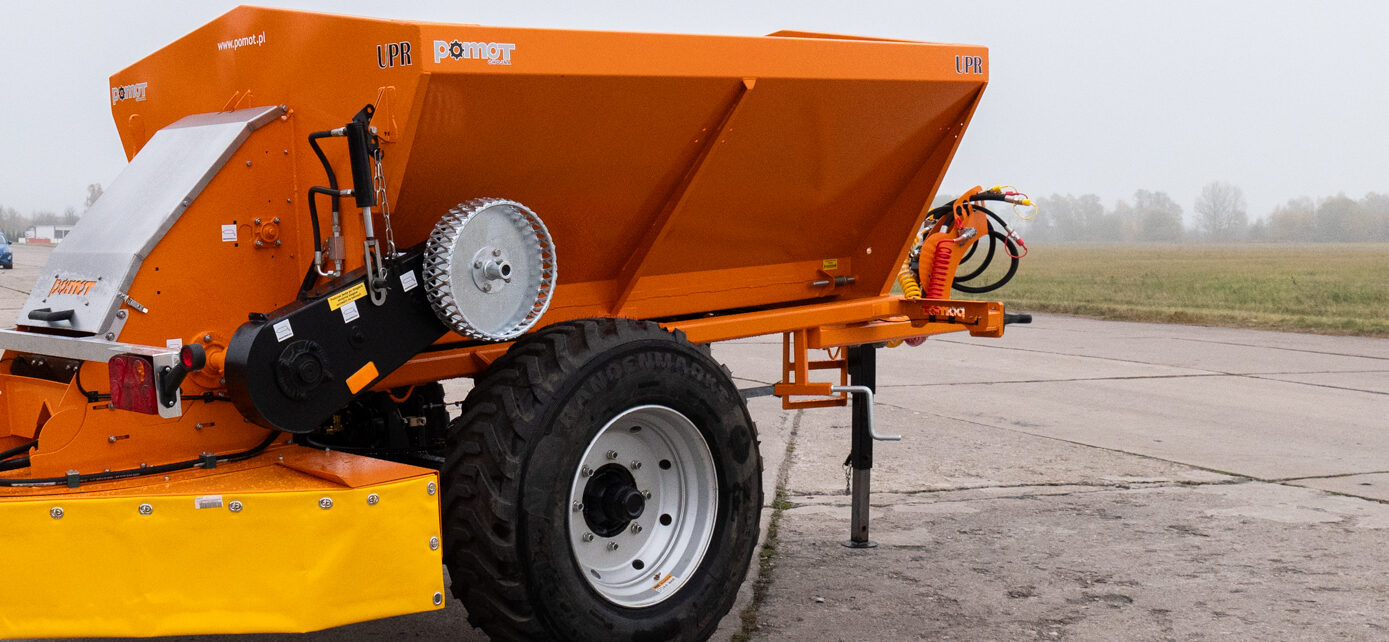

- Hydraulic lifting spike wheel – stops material flow to the spreading disc
- Spreading width adjustment via hydro-mechanical valve controlling oil flow to the hydraulic motor
- Mechanically operated discharge gate with an adjustable opening range from 0 mm to 300 mm
- Discharge gate with 150° opening scale
Other Features
- Maximum design speed: 40 km/h
- Maximum operating speed: 25 km/h
- Galvanized bolts and nuts

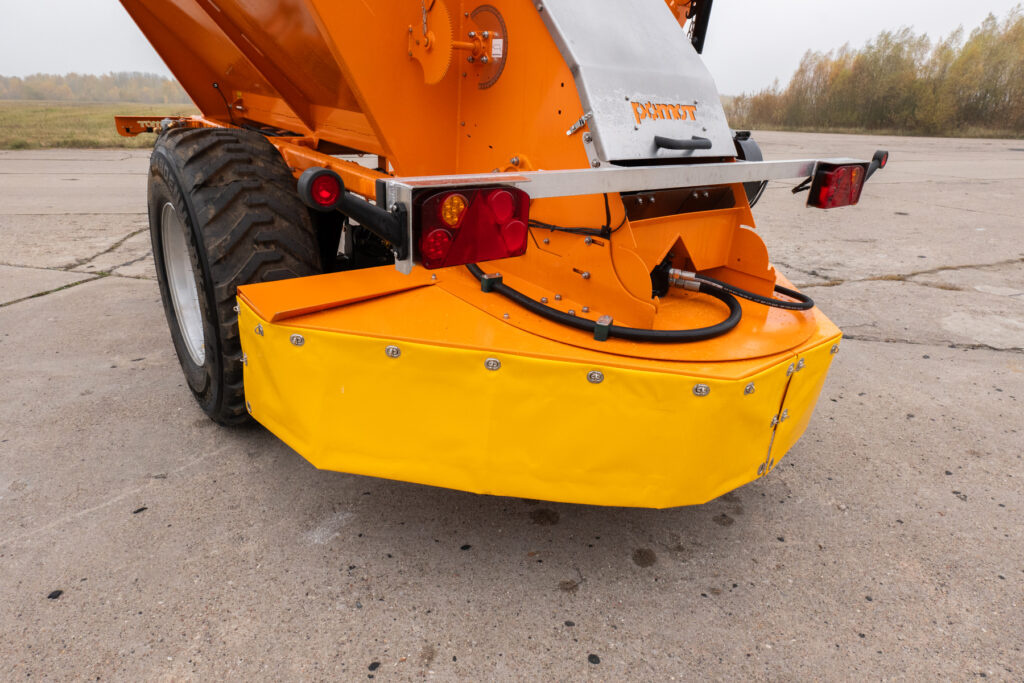

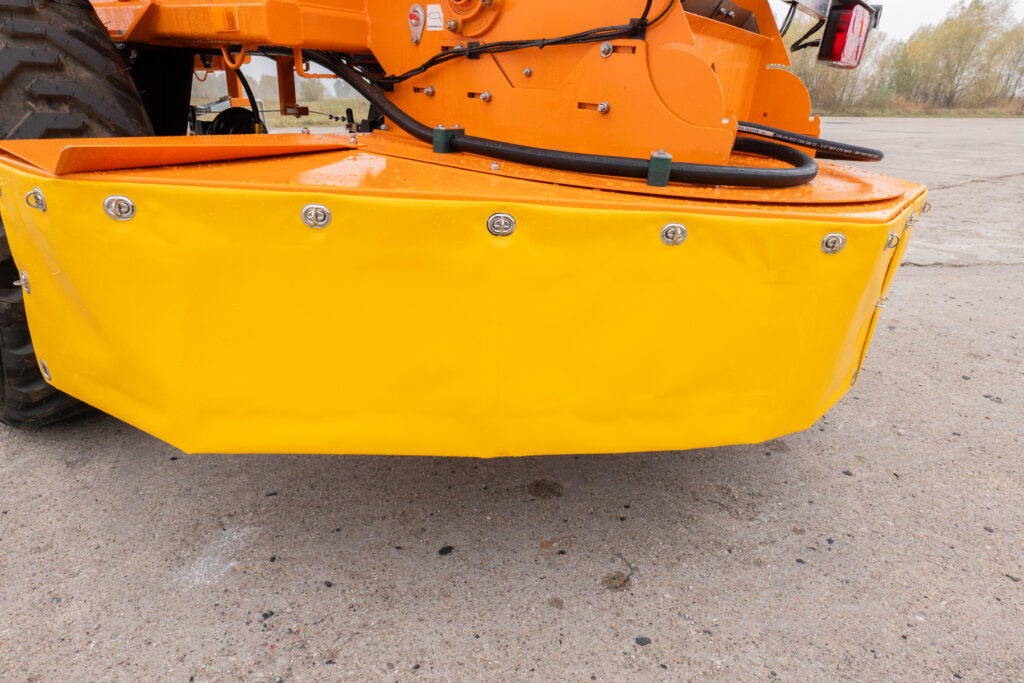

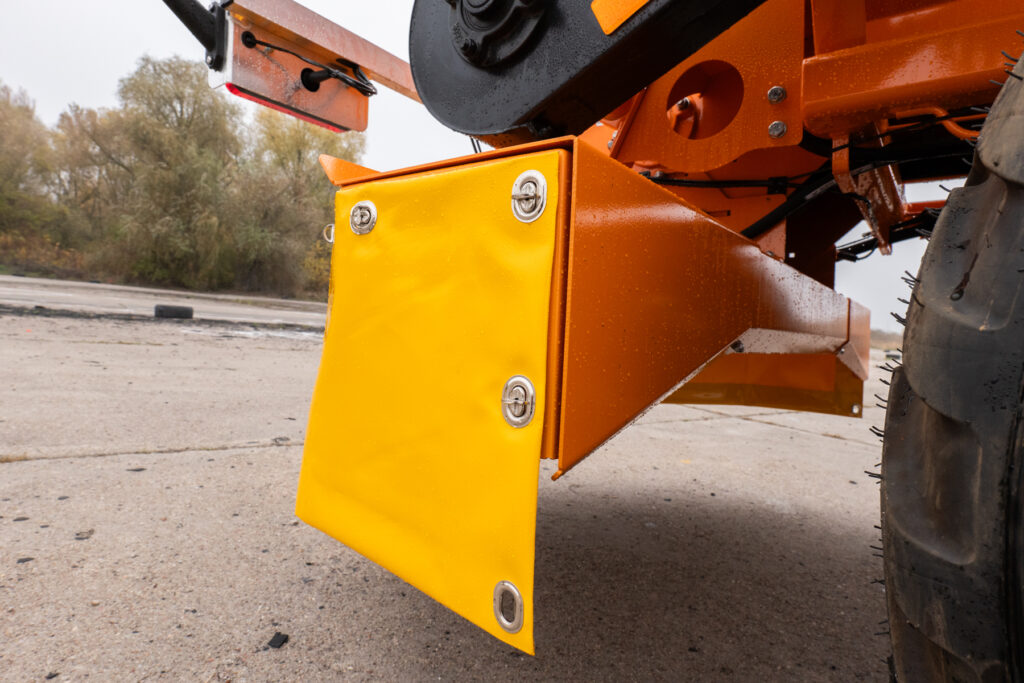

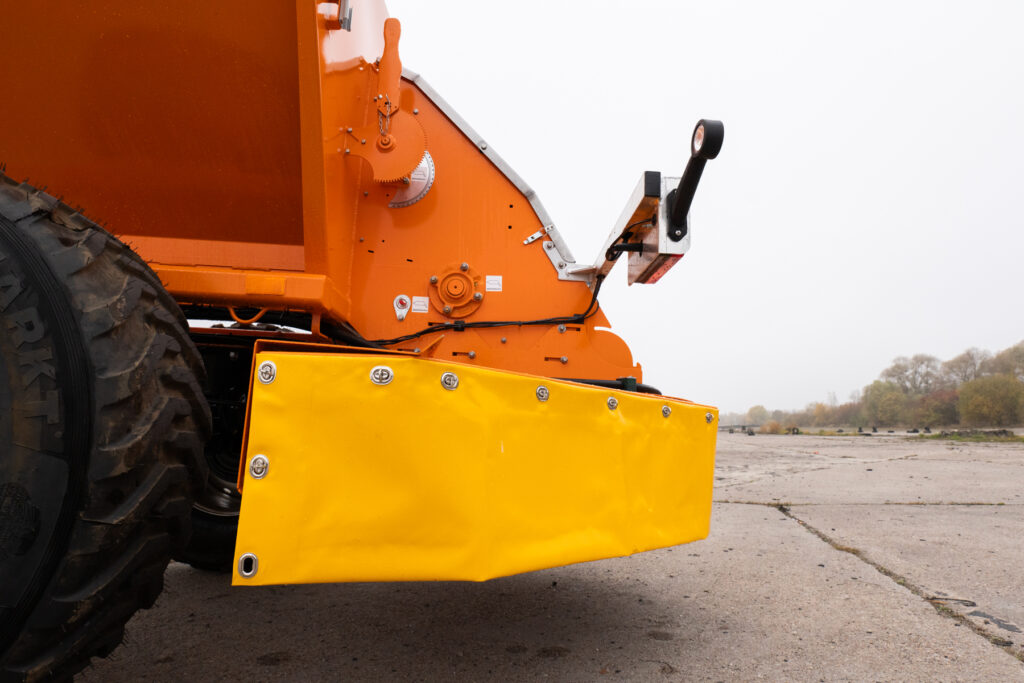

- Rear deflectors near the spreading adapter – painted
