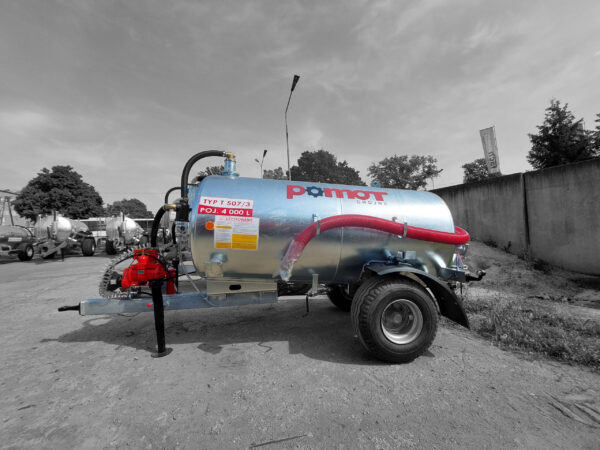

Slurry Tanker T507/3 – 4000 Liters

Single-axle suspension

The T 507/3 series is the first available in both self-supporting and frame constructions. The frame design allows the use of lightweight trailing injector units, making the tanker more functional (the tankers do not require preparation for applicators). The standard equipment includes a spreading spoon with a spreading width of up to 14 meters.

📱 Marcin Górski: +48 691 897 575 | 📧 m.gorski@pomot.pl

📱 Łukasz Lechicki: +48 607 999 359 | 📧 l.lechicki@pomot.pl

Category: Tag:

Standard Equipment

  1. Tank

    • Double-sided hot-dip galvanized tank

    • Tank passivation protecting fresh galvanization against the effects of slurry

    • Rear hatch ø500mm (in T507/2), ø700mm (in T507/1, T507/2, T507/6) – hinged hatch cover

    • Tubular filling indicator with sight glass

    • Discharge nozzle with 1 ½” valve – at the lowest point of the tank

    • Sight glass 4” on the rear bottom plate

    Chassis construction: self-supporting or frame

    • SELF-SUPPORTING – drawbar mounted on reinforced supports under the tank, hot-dip galvanized

    • FRAME – tank mounted on a frame made of closed-profile sections

    • Replaceable hitch – bolted ø50mm

    • Mechanically adjustable support foot

    • Single-axle wheelset, two wheels

    • Tires according to the table

    • Mudguards

    • Pneumatic two-line brake system with 4-step brake force adjustment

    • Parking handbrake

    • Compressor – type according to the table

    • Drive shaft 540 rpm or 1000 rpm – optional

    • Reinforced temperature-resistant hoses connecting fittings

    • Overflow protection via a double-ball valve with sight glass on the top of the tank and siphon with sight glass

    • Pressure/vacuum gauge

    • Two safety valves: overpressure up to 0.05 MPa and vacuum down to -0.05 MPa

    • Oil separator – wet air filter, silencer to reduce compressor noise

    • Suction nozzles 4” ø110mm (in T507/6 – 6” ø150mm)

    • Main discharge nozzle in the rear hatch cover 4” – with hydraulic 4” gate valve

    • Front left and right nozzles – capped, prepared for manual gate valve installation

    • Rear nozzle – capped, prepared for manual gate valve installation

    • 12V electrical and lighting installation

    • Hose 4” (ø110)

    • Transport handles for suction hose

    • Hose with suction basket – protects against large object suction

    • Suction hose length – 6m

    Spreading device

    • Profiled spreading spoon POMOT 94 pattern, spreading width up to 14m

    Homologation certificate

    • Allows registration and driving on public roads

    Power take-off shaft

    VERSION SUSPENSION TIRE SIZE TIRE TYPE COMPRESSOR TYPE
    SELF-SUPPORTING ECONOMIC 890×400 400/60-15.5 MEC or KD 4000
    STANDARD 890×400 400/60-15.5 MEC or KD 4000
    CLASSIC 935×500 500/50-17 MEC or KD 4000
    PREMIUM 935×500 500/50-17 MEC or KD 5000
    FRAME ECONOMIC 1080×390 400 R 22.5 MEC or KD 4000
    STANDARD 1080×390 400 R 22.5 MEC or KD 4000
    CLASSIC 935×500 500/50-17 MEC or KD 4000
    PREMIUM 935×500 500/50-17 MEC or KD 5000

Optional Equipment

Spreading Devices:

  • Wide-angle spreader (working width up to 14 m)

  • Slurry thrower (working width from 6 to 15 m)

  • Mobile device for road watering and crop irrigation – 2.5 m

  • Mobile device for road watering and crop irrigation – 4.5 m wide

  • PERROT-type spreading shovel (working width up to 12 m)

  • Double spreading shovel (working width up to 16 m)

  • Soil injection unit made in the trailing hose system with a working width of 3 m by POMOT – mechanically foldable

  • Soil injection unit made in the trailing hose system with a working width of 3 m by POMOT – hydraulically foldable

  • Plant watering device

Chassis:

  • Upper transport hitch (only for frame construction)

  • K80 ball hitch

  • Hydraulic support leg

  • Hydraulic brake

  • Wheel chocks, 2 pcs

Filling Systems:

  • Additional manual valve 4″

  • Additional manual valve 6″

  • Quick coupling for manual valve 6″

  • Change of fittings from 4″ to 6″

  • Suction hose extension 4″, 3 m length

  • Suction hose extension 4″, 6 m length

  • Suction hose extension 6″, 3 m length

  • Suction hose extension 6″, 6 m length

  • Additional suction hose 4″, 6 m length

  • Additional suction hose 6″, 6 m length

  • Injector 4 or 6″ – suction from 10 m depth

  • Hydraulic compressor drive

Accessories:

  • Metal galvanized hose boxes, 2 pcs

  • Scale marking for pipe indicator with stickers

  • Fully openable rear bottom

  • Upper hatch Ø500 with ladder

  • Fitting W52 with 2″ ball valve

  • Pneumatic agitator

  • Wide-angle power take-off shaft

  • Plastic toolbox

  • Handwashing dispenser

  • Additional painting of galvanized tank (one side)

  • Additional painting of galvanized frame

NOTE: Other additional equipment options are also available (in the accessories tab for sewage wagons)
