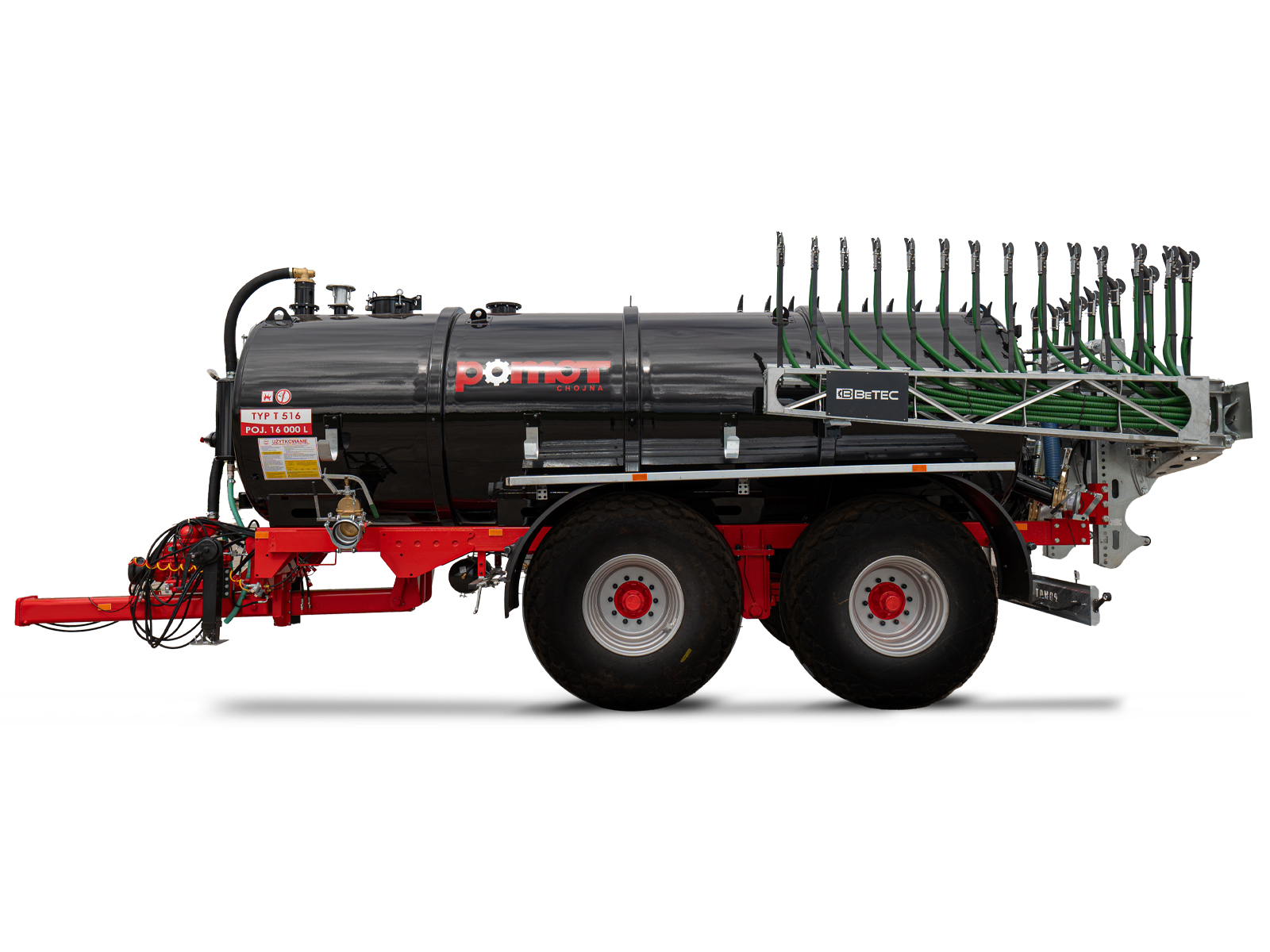

Slurry Tanker T516 – 16000 Liters

Standard Equipment

1. Tank

   • Tank hot-dip galvanized on both sides

   • Tank passivation protecting fresh galvanization from the effects of slurry

   • Rear hatch Ø700 mm – hatch cover on hinge

   • Tubular filling indicator with sight glass

   • Drain outlet with 1½” valve – at the lowest point of the tank

   • Sight glass 4” on the rear bottom

   • Top hatch Ø350 mm

   • Safety valve 4”

   • 8” nozzle on top of the tank, plugged – prepared for mounting a rubber filling funnel

   Trailer construction: frame

   • FRAME – tank mounted on a frame made of closed-section profile

   • Replaceable hitch – bolted, Ø50 mm

   • Mechanically adjustable support leg

   • Wheelset: two spring axles

   • Tires according to the table

   • Mudguards

   • Pneumatic two-line brake system with 4-stage braking force adjustment

   • Hand parking brake

   • Compressor – type according to table

   • Drive shaft 540 rpm or 1000 rpm – on request

   • Reinforced temperature-resistant hoses connecting the fittings

   • Overflow protection using a two-ball valve with a sight glass on top of the tank and a siphon with sight glass

   • Pressure gauge

   • Two safety valves: overpressure up to 0.05 MPa and vacuum up to -0.05 MPa

   • Oil separator – wet air filter, muffler silencing compressor operation

   • Suction nozzles 6” Ø150 mm

   • Main drain nozzle in rear hatch cover 6” – with hydraulic gate valve 6”

   • Front left and right nozzles – plugged, prepared for manual gate valve installation

   • Rear nozzle – plugged, prepared for manual gate valve installation

   • 12V electrical and lighting installation

   • Hose 6” (Ø150)

   • Transport handles for suction hose

   • Hose with suction basket – protecting against sucking in large debris

   • Suction hose length – 6 m

   Spreading device

   • Profiled spreading scoop model POMOT 94, spreading width up to 14 m

   Homologation certificate

   • Enabling registration and use on public roads

   Power take-off shaft (PTO)

   VERSION	SUSPENSION	TIRE DIMENSIONS	TIRES	COMPRESSOR TYPE
   FRAME CONSTRUCTION	ECONOMIC – 2 spring axles (rear steer axle)	1580×587	23.1×26 HD	MEC or KD 8000
   	STANDARD – 2 spring axles (rear steer axle)	1340×600	600/55×26.5	MEC 9000 or KD 10000
   	CLASSIC – 2 spring axles (rear steer axle)	1590×714	28Lx26	MEC 11000 or KD 12000
   	PREMIUM – 2 spring axles (rear steer axle)
